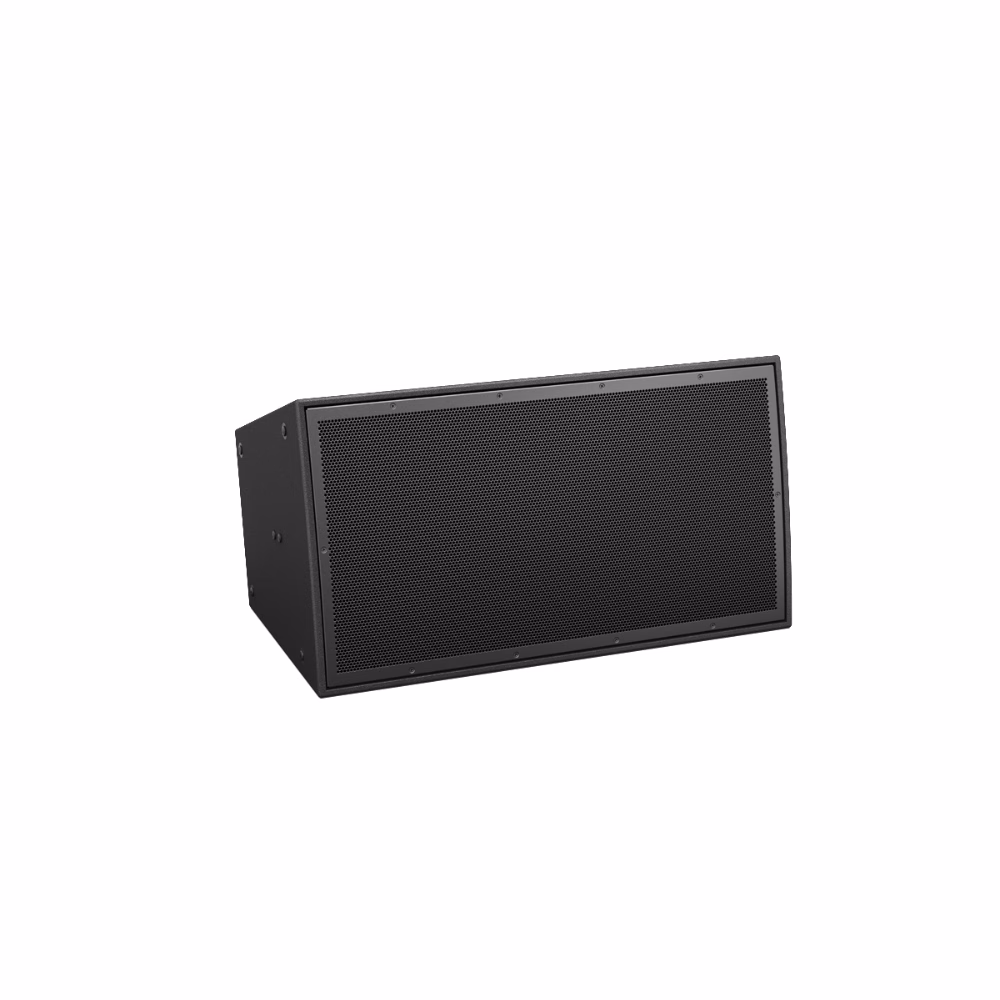

ArenaMatch AM20 DeltaQ array loudspeaker
Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.
Technical Specification
COMPLIANCE
| Item | Detail |
|---|---|
| EN 54-24 Certified | Yes |
| Safety Agency Ratings | EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings |
PHYSICAL
| Item | Detail |
|---|---|
| Colors | Black |
| Enclosure Material | Exterior-grade birch plywood |
| Grille | 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish |
| Ingress Protection | IP55 per EN60529; IP33C per EN 54-24 |
| Product Dimensions (H×W×D) | 17.2 × 30.8 × 16.4 in (437 × 783 × 416 mm) |
| Net Weight | 80.0 lb (36.2 kg) |
| Shipping Weight | 95.5 lb (43.3 kg) |
PERFORMANCE
| Item | Detail |
|---|---|
| Frequency Range (-10 dB) | 55 Hz – 18,000 Hz |
| Coverage, Horizontal | 60° (AM20/60), 80° (AM20/80), 100° (AM20/100) |
| Coverage, Vertical | 20° |
| Calculated Maximum SPL @ 1 m | AM20/60: 122 dB (LF) / 128 dB (HF) / 128 dB (Passive) AM20/80: 122 dB (LF) / 127 dB (HF) / 127 dB (Passive) AM20/100: 122 dB (LF) / 126 dB (HF) / 126 dB (Passive) |
| Nominal Impedance | Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω |
| Power Handling (Long-term Continuous) | LF: 600 W / HF: 150 W / Passive: 750 W |
| Power Handling (Peak) | LF: 2400 W peak / HF: 600 W peak / Passive: 3000 W peak |
| Recommended Power Amplification | Bi-amp LF: 600–1200 W Bi-amp HF: 150–300 W Low-Z Passive: 750–1500 W |
| Recommended Signal Processing | Presets in ControlSpace Designer software |
| Sensitivity (SPL/1W @ 1m) | AM20/60: 94 dB (LF), 106 dB (HF), 99 dB (Passive) AM20/80: 94 dB (LF), 105 dB (HF), 98 dB (Passive) AM20/100: 94 dB (LF), 104 dB (HF), 97 dB (Passive) |
| Transformer Taps (100V) | 200 W, 400 W |
| Transformer Taps (70V) | 100 W, 200 W, 400 W |
TRANSDUCERS
| Item | Detail |
|---|---|
| Crossover | 950 Hz, internal passive or external bi-amp (Bose Professional ControlSpace presets) |
| High-Frequency | 6 × Bose Professional EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil |
| Low-Frequency | 1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil |
PRODUCT INFORMATION
| Item | Detail |
|---|---|
| Product Code 794042-6660 | ARENAMATCH AM20/80 OUTDOOR LDSPKR 80×20 |
| Product Code 794042-3360 | ARENAMATCH AM20/60 OUTDOOR LDSPKR 60×20 |
| Product Code 794042-8860 | ARENAMATCH AM20/100 OUTDOOR LDSPKR 100×20 |
| Warranty Period | 5 years / 2 years |
| Included in Packaging | (1) input panel cover (8) input cover screws (1) installation guide (1) ArenaMatch AM20 module |
- Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area
- Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays
- Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers
- Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
- Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
- Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance
- Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
- Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
- Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
- EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.
