ControlCenter CC-1 zone controller
Bose Professional ControlCenter CC-1 zone controllers provide volume control for FreeSpace, PowerShare, and ControlSpace products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.
Bose ControlCenter CC-1 Technical Specification
| Category | Parameter | Detail |
| Function | Type | Analog Volume-Only Controller |
| Compatible Ecosystem | ControlSpace ESP-880A, FreeSpace IZA Series, PowerShare Amplifiers | |
| Indicators & Controls | Front Panel Controls | (1) Volume Knob |
| Electrical | Connectors | (2) RJ-45 (TIA/EIA 568B standard) |
| Cable Requirements | Cat 5 | |
| Max Cable Length | 609 m (2000 ft) to FreeSpace/PowerShare / 152 m (500 ft) to ControlSpace | |
| Max Unit per Processor | 4 per ControlSpace processor | |
| Physical | Mounting | 1-gang electrical box (NA, EU, JP) |
| Dimensions (NA) | 105 mm × 38 mm × 36 mm (4.1″ × 1.5″ × 1.4″) | |
| Dimensions (EU) | 86 mm × 86 mm × 36 mm (3.4″ × 3.4″ × 1.4″) | |
| Colors | Black, White |
FEATURES
- ControlCenter series: The ControlCenter series is a set of remote controls for use with Bose Professional FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).

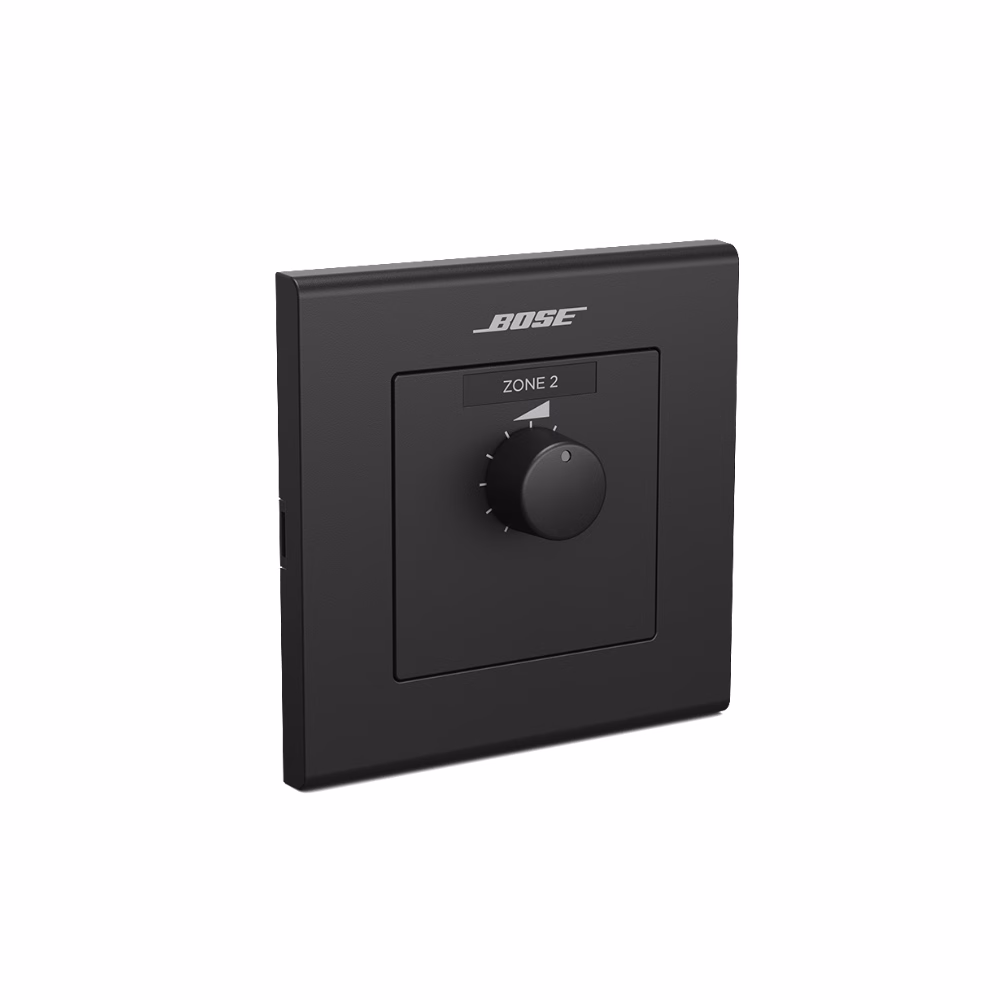

- ControlCenter models: North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate.
- Custom labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
- CV41 4-to-1 converter: The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.
Applications
Designed for a wide range of applications, including:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Religious and worship facilities
- Auxiliary zones
