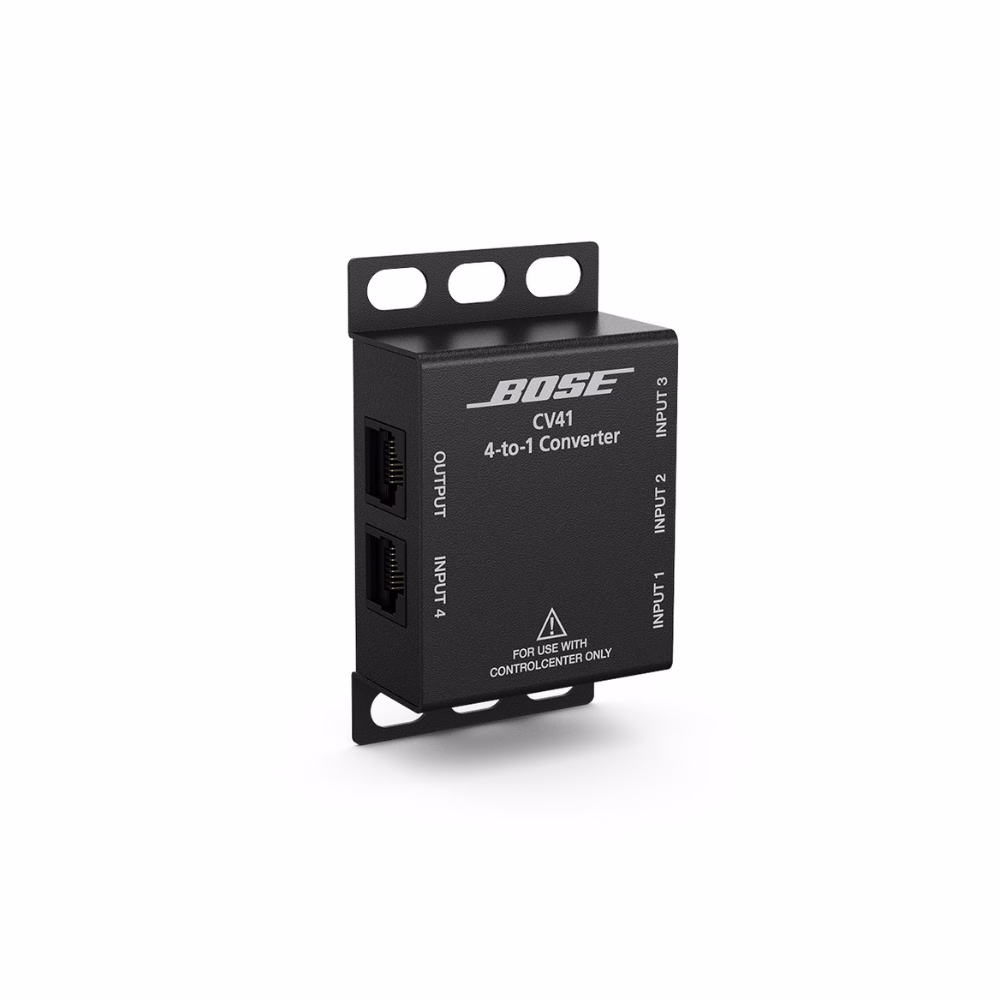

ControlCenter CV41 4-to-1 converter
The Bose Professional ControlCenter CV41 converter simplifies wiring when using multiple ControlCenter CC-1 zone controllers with a PS602 or PS604 PowerShare adaptable power amplifier. The CV41 converter supports up to four CC-1 controllers allowing each CC-1 to homerun to the amplifier.
Bose ControlCenter CV41 Technical Specification
| Category | Parameter | Detail |
| Function | Type | 4-to-1 RJ-45 Passive Converter |
| Compatible Ecosystem | ControlCenter CC-1 Controllers, PowerShare Amplifiers | |
| Electrical | Connectors | (5) RJ-45 (TIA/EIA 568B standard) |
| Cable Requirements | Cat 5 | |
| Max Cable Length | 609 m (2000 ft) to CC-1 / 7.6 m (25 ft) to Amplifier | |
| Capacity (PS602) | Up to 2 ControlCenter CC-1 controllers | |
| Capacity (PS604) | Up to 4 ControlCenter CC-1 controllers | |
| Physical | Dimensions (H×W×D) | 88 mm × 51 mm × 27 mm (3.5″ × 2.0″ × 1.1″) |
| Mounting | 2RU Rack ears / Surface mount | |
| Color | Black |
FEATURES
- The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.
Applications
Designed for a wide range of applications, including:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Religious and worship facilities
- Auxiliary zones
