ControlSpace CC-64 control center

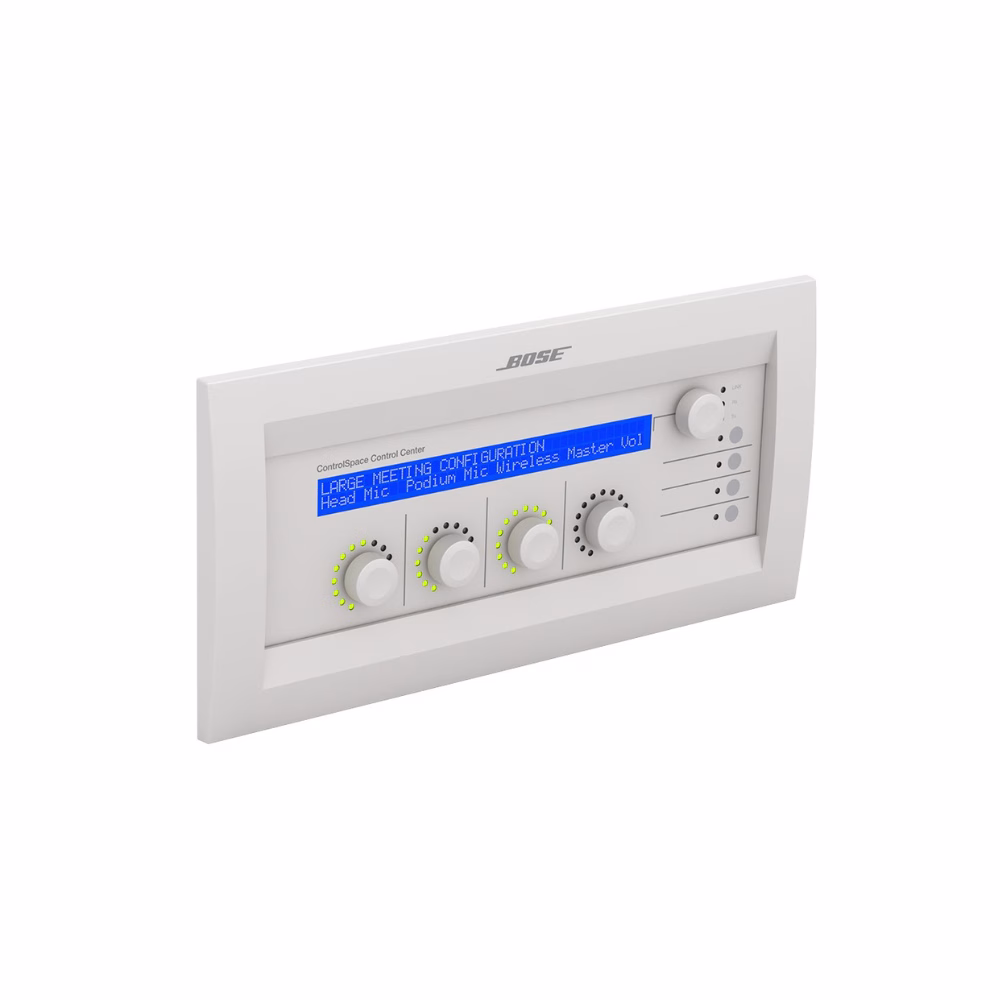

The Bose Professional ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system. The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed “scenes” or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.
Bose ControlSpace CC-64 Technical Specification
| Category | Parameter | Detail |
| Function | Type | Networked Ethernet Controller (Customizable) |
| Compatible Ecosystem | ControlSpace Network (Processors & PowerMatch) | |
| Indicators & Controls | Front Panel Controls | (4) Gain/Select Knobs, (4) Bank Buttons, (1) Master Knob |
| Display | 2-line × 40-character Backlit LCD (Blue) | |
| LED Feedback | (4) Volume LED Rings, (4) Bank LEDs, Network Status | |
| Electrical | Connectors | (1) RJ-45 (Network), (1) 2-pin Euroblock (Power) |
| Power Range | 15–24 VDC, 300 mA | |
| Cable Requirements | Cat 5 (Unshielded Twisted-Pair / UTP) | |
| Max Cable Length | 100 m (328 ft) | |
| Max Unit per Network | 16 Units | |
| Physical | Mounting | 5-gang electrical box (North America) |
| Dimensions (H×W×D) | 137 mm × 282 mm × 51 mm (5.4″ × 11.1″ × 2.0″) | |
| Color | White |
FEATURES
- Elegant styling with easy-to-read dynamic labeling for simplified end user operation
- 2-line by 40-character backlit LCD screen
- 4 gain/selector control knobs (rotary/push) with LED rings
- 4 bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls
- 1 master scene/preset recall knob (rotary scroll/push to select)
- Simplified drag-and-drop setup using ControlSpace Designer software
- Customizable on-screen wording provides easier system operation
- Supports programming of easy-to-select scenes, allowing multiple room usage scenarios to be recalled from the CC-64 by end users
- Programmable software lock-out
- Fits into a standard 5-gang electrical wall box
