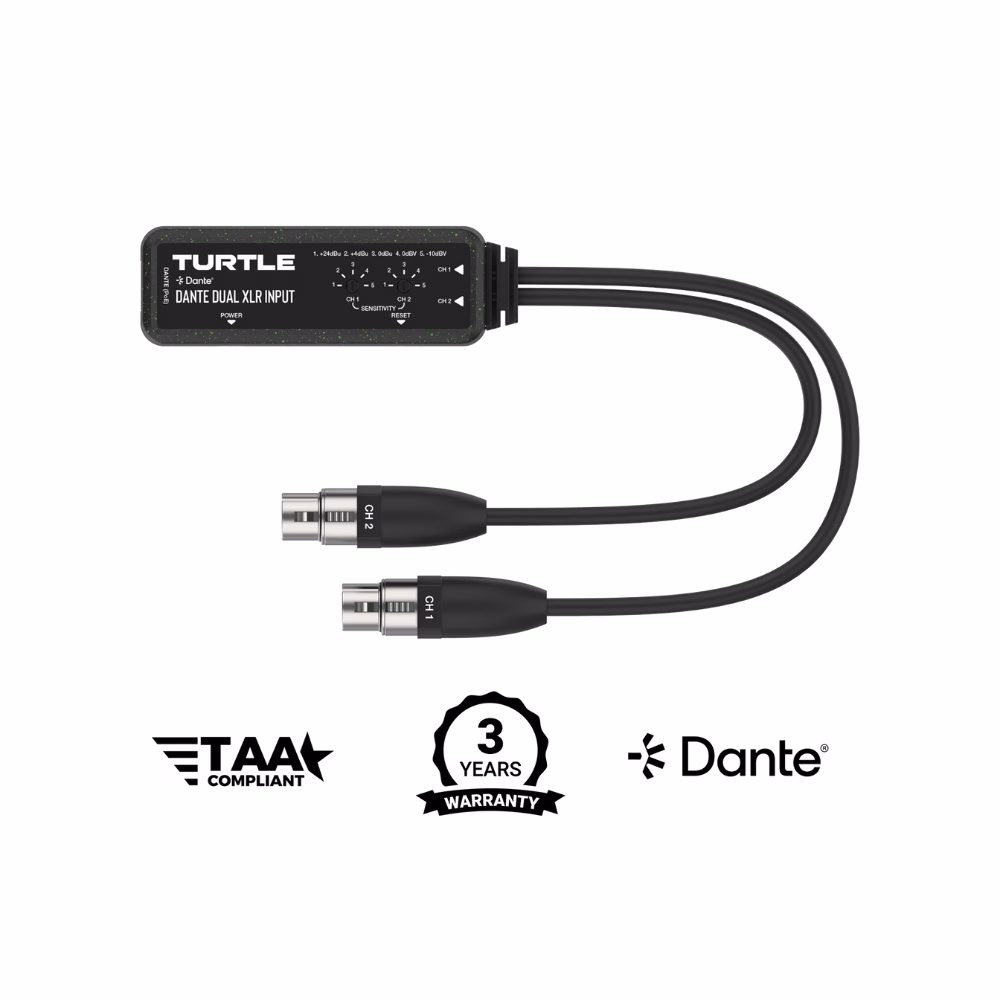

Dante 2CH Analog XLR Input Adapter with Gain Controls
Unlock the power of pristine digital audio with the two-channel XLR analog audio to Dante® 2CH digital audio. Built on the cutting-edge Dante® Ultimo 2×2 solution, this adapter converts two-channel balanced or unbalanced analog XLR to crystal-clear Dante® digital audio.
With 5-level sensitivity adjustment for analog inputs, you can tailor your sound with ease. Additionally, the adapter is powered via USB-C or PoE, ensuring flexible and convenient power options.
| Category | Specification |
|---|---|
| Product Name | Turtle AV TAV-D2XEN |
| Function | 2-Channel Analog XLR Input to Dante® Digital Audio Converter |
| Audio Conversion | Analog → Dante® (2 channels) |
| Analog Inputs | 2 × Balanced/Unbalanced XLR (female) |
| Input Level Range | Line: +24 dBu max; Mic: adjustable sensitivity |
| Input Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) |
| Input Sensitivity Adjustment | 5 selectable levels for gain matching |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| Signal-to-Noise Ratio | >100 dB (A-weighted) |
| THD + N | <0.005% @ 1 kHz, 0 dBu |
| Digital Audio Format | Dante® / AES67 compatible |
| Sampling Rates Supported | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Bit Depth | 24-bit |
| Configurable Latency | 1 ms / 2 ms / 5 ms |
| Network Interface | 1 × RJ-45 Dante port (100 Mbps, PoE) |
| Control Interface | Dante Controller (for routing and setup) |
| Power Options | PoE (IEEE 802.3af, Class 1) or USB-C (5 V DC) |
| Power Consumption | < 4 W |
| Enclosure Material | 90 % recycled plastic (includes 5 % ocean-bound material) |
| Mounting |
The TAV-D2XEN is a professional-grade audio adapter designed to convert two channels of balanced or unbalanced analog XLR audio into a Dante® 2-channel digital audio stream. It supports high-resolution audio (44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz at 24-bit), and offers selectable latency settings (1 ms, 2 ms or 5 ms) to align with networked audio environments.
Each analog input has a five-level sensitivity adjustment, allowing it to adapt easily to line-level or mic-level signals. The unit supports dual power options—Power over Ethernet (PoE) or USB-C—making installation flexible and efficient. Built with sustainability in mind, its enclosure is made from 90 % recycled plastic (including 5 % “ocean bound” material), while maintaining rugged performance suitable for pro AV setups.
Ideal for broadcast, live sound, studio installations or any environment where integrating analog XLR sources into a Dante audio network is required, this adapter combines audio fidelity, network reliability, and compact form-factor convenience.
