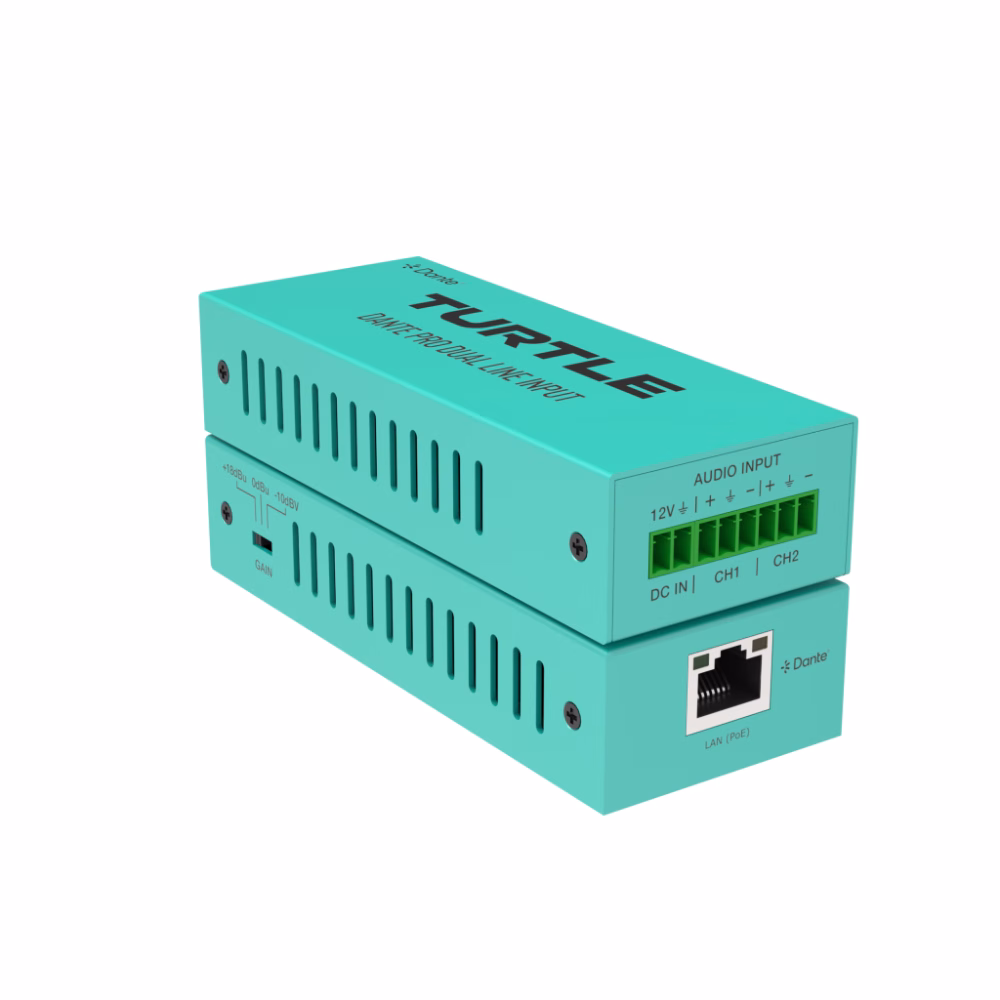

Dante Pro 2CH Analog Line Input Adapter with Gain Controls
Unlock the power of pristine digital audio with the Dante® 2CH Line Input Adapter. Built on the cutting-edge Dante® Ultimo 2×2 solution, this adapter converts two-channel balanced or unbalanced analog audio into crystal-clear Dante® digital audio.
With 3-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. The Dante Pro Dual Line INput is in a rugged metal chassis and can be powered PoE or 12V DC using the phoenix connectors.
| Category | Specification |
|---|---|
| Product Name | Turtle AV TAV‑D2LEN‑PRO |
| Function | 2‑Channel analog line input to 2‑channel Dante® digital audio output |
| Analog Inputs | 2 inputs, balanced/unbalanced via Euroblock/Phoenix connectors |
| Maximum Input Level | +24 dBu (balanced) / +18 dBu (unbalanced) |
| Input Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) |
| Dante® Digital Output | 2 channels, 16 or 24‑bit, 44.1/48/88.2/96 kHz |
| Configurable Latency | Dante device latency selectable: 1 ms / 2 ms / 5 ms |
| Supported Network Bandwidth | 100 Mb/s |
| Audio Performance | Frequency response 20 Hz‑20 kHz (±0.5 dB) Dynamic range >100 dB @0 dBu, 1 kHz (A‑weighted) THD+N <0.01% @ +4 dBu, 1 kHz |
| ESD Protection | IEC 61000‑4‑2: ±8 kV (air) / ±4 kV (contact) |
| Power Options | PoE (IEEE 802.3af Class 0) or 12 V DC via Phoenix connector |
| Power Consumption | Approx. 2 W max |
| Housing / Construction | Metal enclosure, “Turtle Aqua” finish |
| Dimensions | Approx. 120 mm (W) × 47 mm (D) × 26 mm (H) |
| Weight | Approx. 186 g |
| Operating Temperature | ‑20 °C to +60 °C |
| Relative Humidity | 20 % – 90 % RH (non‑condensing) |
| Compliance & Warranty | TAA compliant, 5‑year warranty with advance‑replacement |
The Turtle AV TAV‑D2LEN‑PRO is a professional‑grade audio interface designed to seamlessly convert two channels of balanced or unbalanced analog line‑level audio into high‑quality Dante®/AES67 networked audio. Built on the Dante Ultimo 2×2 chipset, it supports 24‑bit resolution and sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz.
Featuring low‑latency performance with selectable device latency of 1 ms, 2 ms or 5 ms, it is ideal for live production, broadcast, installation AV and other professional‑audio environments. The analog inputs provide three selectable gain levels (+18 dBu, 0 dBu, ‑10 dBV) for flexible signal matching. Connectivity is simple: two analog line‑inputs via Euroblock/Phoenix connectors and a single RJ‑45 Dante output port with PoE or 12 V DC power options.
Designed for integrators, the unit resides in a rugged, all‑metal “Turtle Aqua” chassis, measures approximately 120 mm × 47 mm × 26 mm and weighs about 186g—compact yet durable. It supports full Dante Controller functionality and is TAA‑compliant, making it suitable for institutional, corporate and government AV installations.
With advanced features like AES67 interoperability, full software control, and premium build quality, the TAV‑D2LEN‑PRO bridges the analog world to digital audio networks with precision, reliability and professional flexibility.
