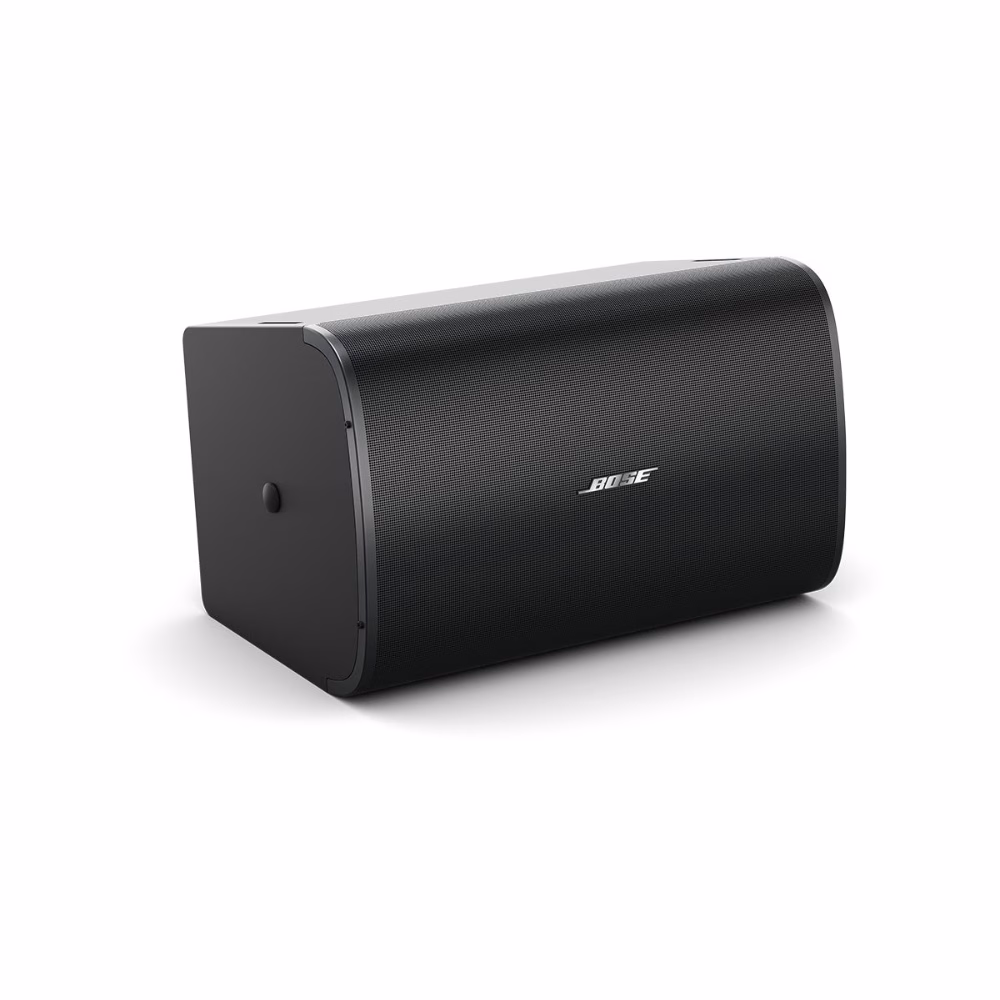

DesignMax DM10S-SUB subwoofer
Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesignMax subwoofers complement and enhance any DesignMax installation.
Bose DesignMax DM10S-SUB
Compliance
Safety Agency Ratings
UL-1480A, S5591 / UL Listed, NFPA 70, CE compliant
Physical
Colors
Black (RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
High-density wood composite with solid color laminate, UV fade-resistant
Environmental
Indoor use only
Grille
Perforated steel, powder-coated finish, paintable, tamper-resistant design
Logo
Rotatable, removable
Suspension / Mounting
QuickHold mounting system with included U-bracket
1 × M8 safety cable attachment insert
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H × W × D)
19.8 × 12.5 × 12.7 in (502 × 316 × 323 mm), loudspeaker
19.8 × 12.5 × 13.6 in (502 × 316 × 346 mm), loudspeaker with bracket
Net Weight
35.5 lb (16.1 kg), loudspeaker with grille and bracket
Shipping Weight
41.5 lb (18.8 kg)
Performance
Frequency Range (-10 dB)
35 Hz – 125 Hz
Coverage, Horizontal
Omnidirectional below 200 Hz
Coverage, Vertical
Omnidirectional below 200 Hz
Calculated Maximum SPL @ 1 m
115 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling (Long-term Continuous)
300 W
Power Handling (Peak)
1200 W
Sensitivity (SPL / 1 W @ 1 m)
90 dB
Recommended Signal Processing
Not required. Bose Professional EQ voicing and SmartBass processing available.
Transformer Taps, 100 V
40 W, 80 W, 150 W, bypass
Transformer Taps, 70 V
20 W, 40 W, 80 W, 150 W, bypass
Transducers
Low Frequency
1 × 10 in (254 mm) woofer
Crossover
80 Hz – 200 Hz via active crossover in DSP
Driver Protection
Recommended high-pass protection 40 Hz with 18 dB/octave filter
Product Codes
831856-0110 — DESIGNMAX DM10S-SUB SINGLE BLK
831856-0210 — DESIGNMAX DM10S-SUB SINGLE WHT
Included in Packaging
1 × DesignMax DM10S-SUB subwoofer
1 × U-bracket
1 × Installation guide
2 × Rubber caps
2 × M8 screws
- Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
