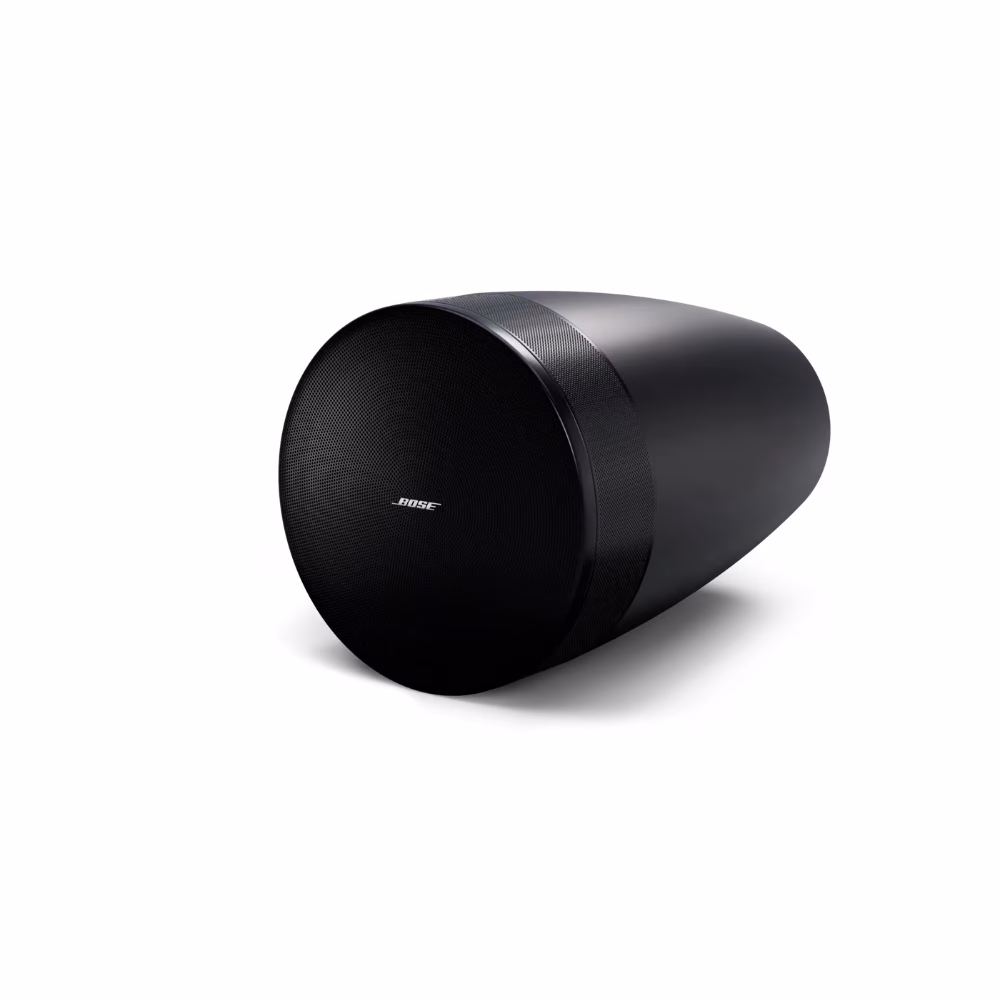

DesignMax Luna DML88P loudspeaker
The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
Bose DesignMax Luna DML88P
Technical Specification
Compliance
Safety Agency Ratings
UL Listed
UL 1480A
NFPA 70 & NFPA 90A
CE-compliant
Physical
Colors
Black (similar to RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
Engineered plastics
Environmental
Indoor use only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
Grille
Perforated steel, powder-coated finish, paintable
Logo
Rotatable, removable
Suspension / Mounting
1 × 3-hole suspension cable attachment point
Product Dimensions (H × W × D)
308 mm × 492 mm (12.1 × 19.4 in), loudspeaker diameter × depth
Net Weight
10.0 kg (22.0 lb)
Performance
Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
107 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling (Long-term Continuous)
140 W
Power Handling (Peak)
560 W
Sensitivity (SPL / 1 W @ 1 m)
85 dB
Recommended Signal Processing
Not required. Bose Professional EQ voicing and SmartBass processing available.
Transformer Taps (100 V)
25 W, 50 W, 100 W, bypass
Transformer Taps (70 V)
12 W, 25 W, 50 W, 100 W, bypass
Transducers
High Frequency
8 × 2.0 in (51 mm) drivers in circular array
Low Frequency
1 × 8 in (203 mm) woofer
Product Codes
892117-0100 — DESIGNMAX DML88P BLK
892117-0200 — DESIGNMAX DML88P WHT
Included in Packaging
1 × DesignMax Luna DML88P
1 × Connection panel cover
1 × Adjustable suspension cable system
4 × Cable ties
1 × Installation guide
- Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
- Integrated 8” woofer extends down to 40 Hz—no subs needed
- Wide-throw 140° coverage reduces speaker count and installation costs
- Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
- Streamlined design with concealed wiring and premium finish options
- Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
- Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
