ECM S10 – Partition Sensor Set
Key Features
- Partition sensor set that automates system behavior based on the position of a moveable wall within divisible rooms
- eBUS port
- Digital output
- 14VDC output on receiver is used to power the transmitter
- DIP switches are used to set unique eBUS device addresses and minimize setup time
- eBUS-enabled receiver connects to the control processor using a single cable that carries both power and communication
| ECM S10 | |||
| eBUS control interface | |||
|---|---|---|---|
| eBUS control | (1) 3.5 mm captive screw connectors, 4 pole | ||
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = – signal; G = ground | ||
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable | ||
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the ECM S10 Setup Guide or eBUS Technology Reference Guide for details. | ||
| ECM S10 — Receiver | |||
| Digital output | |||
| Connectors | (1) 3.5 mm captive screw connectors, 2 pole | ||
| Low logic | 0 VDC ~ 2.0 VDC | ||
| High logic | 2.8 VDC ~ 5.0 VDC | ||
| Hysteresis | 0.8 VDC | ||
| Pullup | fixed | ||
| Power output | |||
| Connector | (1) 3.5 mm captive screw connectors, 2 pole provides power to transmitter | ||
| Power output | 14 VDC @ 100 mA | ||
| Detecting Distance | 10 feet (3.0 m) | ||
| Operating angle | Transmitter/Receiver 3-15 degrees | ||
| ECM S10 — Transmitter | |||
| Light source | Infrared LED (870 nm wavelength) | ||
| Software and control options | |||
| Configuration software | Global Configurator Plus and Professional | ||
| Programming software | Global Scripter | ||
| Control apps | Extron Control | ||
| Utilities | Toolbelt | ||
| General | |||
| Power | |||
| Transmitter | 14 VDC (supplied by ECM S10 receiver) | ||
| Receiver | 12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply) | ||
| Power consumption | 1.0 watts (transmitter and receiver combined) | ||
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 35% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 35% to 85%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | 2.6 BTU (transmitter and receiver combined) | ||
| Mounting | |||
| Rack mount | No | ||
| Furniture or wall mount | Yes, in a standard 1-gang US, EU or MK junction box. Oversized 1-gang Decorator style faceplate (included). | ||
| Enclosure type | Plastic faceplate, metal mounting plate | ||
| Enclosure dimensions | |||
| Faceplate | (Transmitter and Receiver) Oversized 1-gang Decorator style (included) 5.25″ H x 3.50″ W (134 mm H x 89 mm W) | ||
| Device | |||
| Transmitter | 4.20″ H x 1.75″ W x 1.66″ D (108 mm H x 45 mm W x 42 mm D) | ||
| Receiver | 4.20″ H x 1.75″ W x 2.46″ D (108 mm H x 45 mm W x 63 mm D) | ||
 | |||
| Product weight | |||
| Transmitter | 0.15 lb (0.07 kg) | ||
| Receiver | 0.20 lb (0.09 kg) | ||
| Regulatory compliance | CE, c-UL, C-Tick, FCC Class A, ICES, RoHS, UL, VCCI class A, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||
| |||

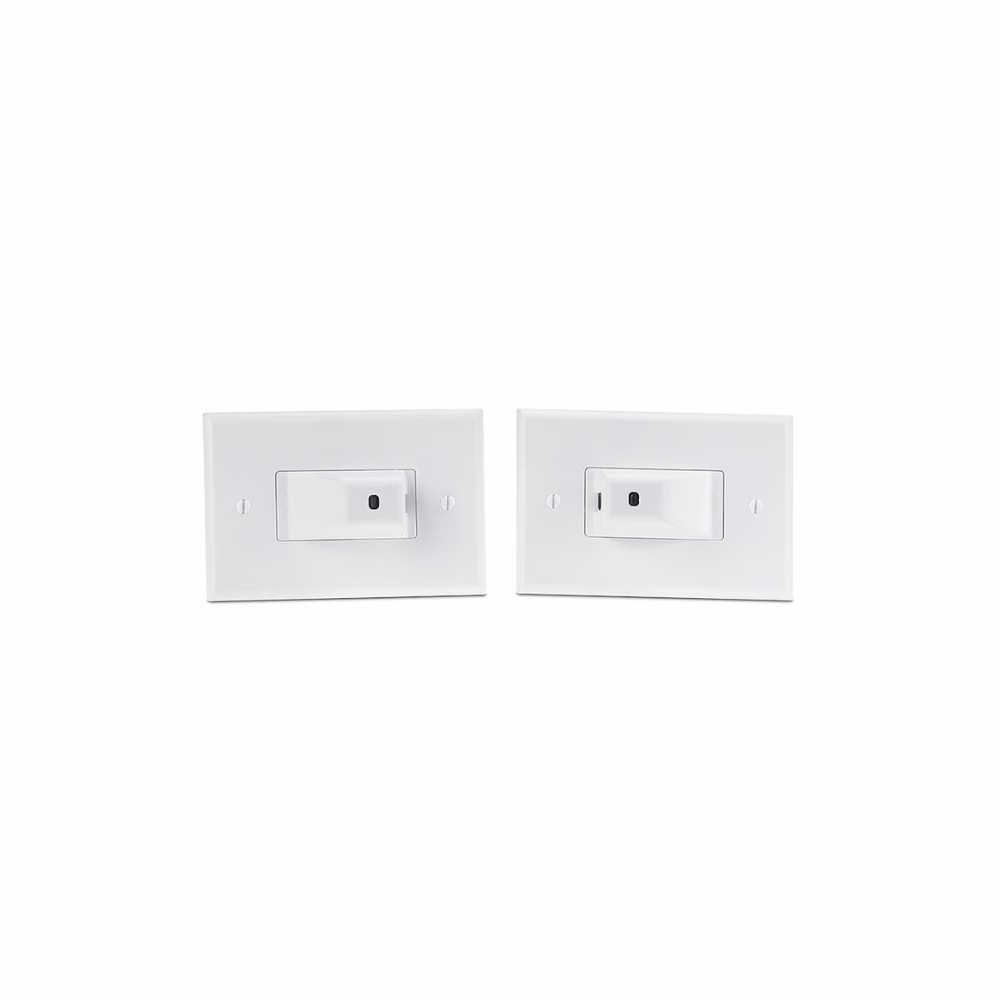

The Extron ECM S10 is a partition sensor set designed to automate AV system behavior based on the position of a movable wall. The set connects to any Extron Pro Series device equipped with a digital I/O or eBUS port. It uses an infrared beam to sense the position of a movable partition wall within divisible rooms. The ECM S10 receiver offers a digital output port and a 14 VDC output to provide power to the transmitter. For convenient integration, eBUS control modules, like the ECM S10 are linked to the control processor or to other eBUS devices using a single cable that carries both power and communication. The ECM S10 transmitter and receiver each mount into a US single gang, EU, or MK junction box and include white oversized decorator-style wallplates.
Features
- Partition sensor set that automates system behavior based on the position of a moveable wall within divisible rooms
- eBUS port — Allows for easy connection to an eBUS device or IPCP Pro control processor.
- Digital output — Allows for integration with non-eBUS compatible systems that have digital I/O ports.
- 14VDC output on receiver is used to power the transmitter
- DIP switches are used to set unique eBUS device addresses and minimize setup time
- eBUS-enabled receiver connects to the control processor using a single cable that carries both power and communication
- Compatible with all Extron IPCP Pro control processors and other products featuring a digital I/O
- Various eBUS diagnostic LEDs provide connection, communication, and ID status for troubleshooting
- Receiver module has adjustable sensitivity and logic output state controls
- Removable captive screw connectors allow for quick installation
- Transmitter and Receiver can be positioned up to 10 feet (3 meters) apart
- Includes two white oversized decorator-style wallplates and mud rings
- Mounts in US single gang, EU, or MK junction boxes
