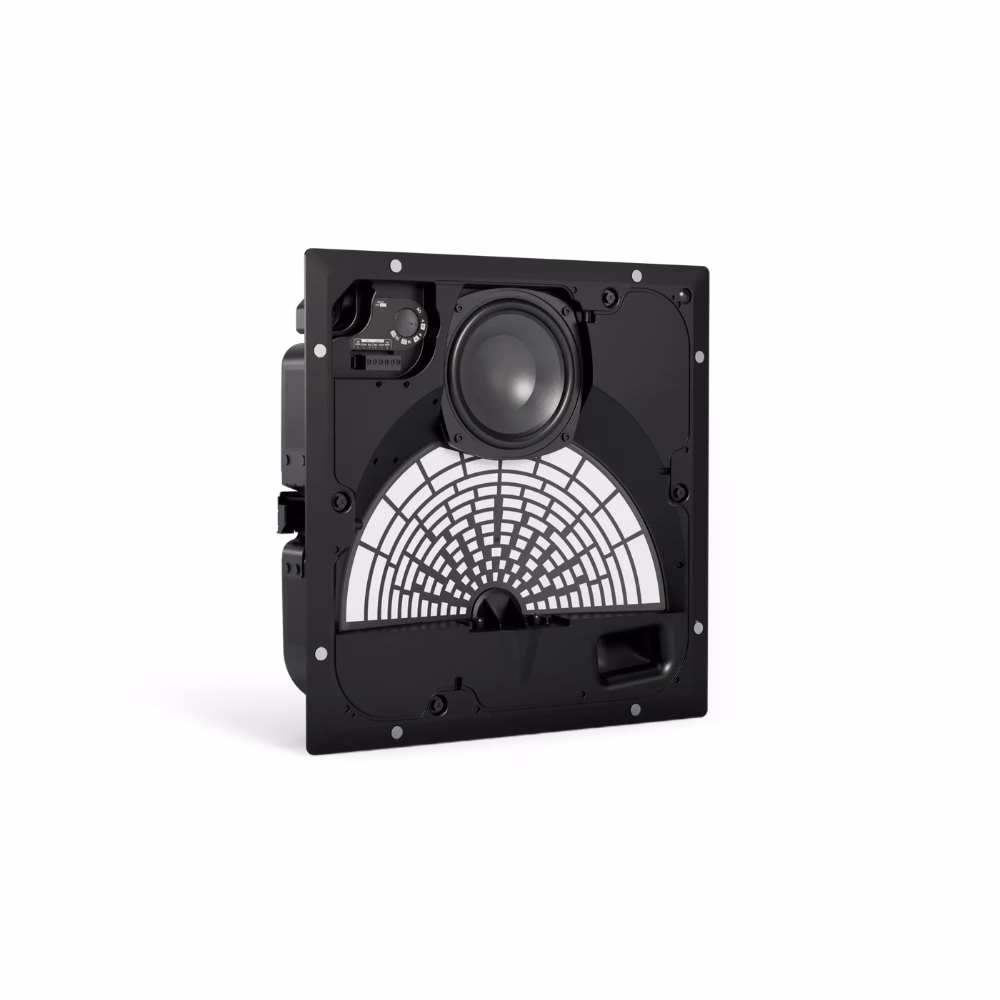

EdgeMax EM180-LP loudspeaker

EdgeMax EM180-LP loudspeaker

EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide® technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room’s edges to the center. New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models. EdgeMax models are purpose-built to provide specific horizontal coverage.

Whatsapp
Categories: , Brand:

TECHNICAL SPECIFICATION

COMPLIANCE

  • Safety Agency Ratings: UL 1480A, UL 2043

PHYSICAL

  • Color: White (similar to RAL 9003), paintable

  • Enclosure Material: Engineered-plastics front baffle with integrated steel-formed enclosure

  • Environmental: Indoor use only

  • Grille: Microperforated steel, powder-coated finish, paintable

  • Ceiling Cutout:
    345 × 345 × 100 mm (13.6 × 13.6 × 3.9 in)
    Length × Width × Mounting Depth

  • Suspension / Mounting:
    (4) Quickhold spring-loaded mounting arms
    (4) Safety cable attachment points

  • Product Dimensions (H × W × D):
    339 × 339 × 100 mm (13.4 × 13.4 × 3.9 in) enclosure
    390 × 390 × 13 mm (15.4 × 15.4 × 0.5 in) grille flange

  • Net Weight: 7.6 kg (16.7 lb), single unit with grille

  • Shipping Weight: 11.1 kg (24.5 lb)

PERFORMANCE

  • Frequency Range (-10 dB): 45 Hz – 19 kHz

  • Coverage: 180° Horizontal / 80° Vertical

  • Maximum SPL @ 1 m: 106 dB continuous, 112 dB peak

  • Nominal Impedance: 8 Ω (transformer bypassed)

  • Power Handling (Long-term continuous): 32 W

  • Power Handling (Peak): 128 W

  • Sensitivity (SPL/1 W @ 1 m): 91 dB

  • Recommended Signal Processing: Recommended but not required

  • Transformer Taps (100V): 8 W, 16 W, 32 W, bypass

  • Transformer Taps (70V): 4 W, 8 W, 16 W, 32 W, bypass

TRANSDUCERS

  • Crossover: 1 kHz, passive 2-way crossover with integrated 70/100V transformer

  • Driver Protection: Recommended high-pass protection at 55 Hz with minimum 24 dB/octave filter

  • High-Frequency:
    1 × compression driver
    1.3 in (33 mm) voice coil

  • Low-Frequency:
    1 × 5.25 in (133 mm) woofer
    1.5 in (38 mm) voice coil

PRODUCT CODE

  • 891454-0200 – EDGEMAX EM180-LP IN CEILING LDSPKR WHT

INCLUDED IN PACKAGING

  • (1) Ceiling hole template

  • (1) Installation guide

  • (1) Paint shield

  • (1) Tile bridge

  • Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience regardless of their location
  • In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound
  • High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
  • In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
  • Wall-boundary loading for greater bass response and performance
  • 2-way passive crossover with bypassable 70/100V transformer
  • Consistent voicing across the EdgeMax family
  • QuickHold spring-loaded mounting system for easy installs
  • Magnetically attached grille for quick access to wiring and tap settings
  • Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances
  • 80-degree vertical coverage angle for use in rooms with lower ceilings
  • UL 1480A and UL 2043 safety standard compliance
