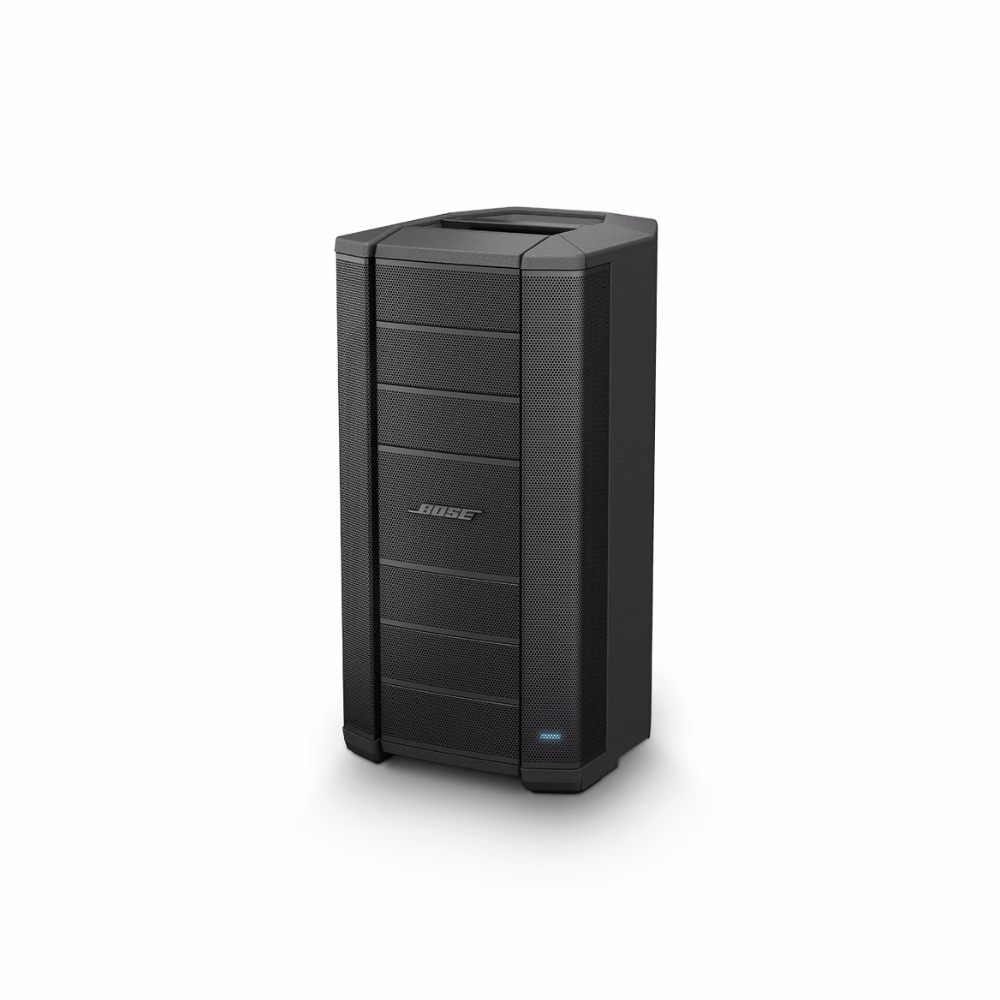

F1 Model 812 Flexible Array loudspeaker
Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.
Bose F1 Model 812
Technical Specification
Amplification
Number of Channels
2
Power Class
Class D
THD+N
0.1% maximum (30 Hz – 15 kHz)
Audio Inputs (Analog)
Input Channels
2
Connectors
1 × XLR / 1/4-in combo
1 × RCA stereo pair
1 × 1/4-in TS/TRS
Sensitivity Options
Infinity to +34 dB (line)
Infinity to +54 dB (mic)
Infinity to +26 dB (RCA)
Infinity to +20 dB (1/4-in)
Phantom Power
No
Electrical
AC Power Connector
IEC
AC Power Input
100–240 V, 50/60 Hz
General
Software Applications
No
Indicators and Controls
Controls (Rear Panel)
Volume level
Signal input select
Front LED function select
EQ V
LED Status Indicators
1 × Power / fault LED
2 × Signal / clip LEDs
1 × Limit LED
1 × Configurable front-panel LED
Integrated DSP
DSP-Enabled
Yes
Processing Functions
Output EQ
Limiter
Physical
Colors
Black
Enclosure Material
High impact composite materials
Grille
Steel, powder-coated finish
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H × W × D)
26.1 × 14.6 × 13.1 in (663 × 371 × 333 mm)
Net Weight
44.5 lb (20.2 kg)
Shipping Dimensions (H × W × D)
32.5 × 20.0 × 18.5 in (826 × 508 × 470 mm)
Shipping Weight
55.0 lb (24.9 kg)
Storage Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Performance
Frequency Range (-10 dB)
43 Hz – 20 kHz
Coverage, Horizontal
100°
Coverage, Vertical
40°
Calculated Maximum SPL @ 1 m
132 dB
Power Handling (Peak)
1000 W
Transducers
Crossover
600 Hz, 4th-order Butterworth
Driver Protection
Dynamic limiter
High Frequency
8 × 2.25 in (57 mm) mid-high-frequency drivers
Low Frequency
1 × 12 in (305 mm) low-frequency driver
Product Codes
731419-1110 — F1 MODEL 812 FLEX ARRAY LDSPKR 120V US
731419-2110 — F1 MODEL 812 FLEX ARRAY LDSPKR 230V EU
731419-3110 — F1 MODEL 812 FLEX ARRAY LDSPKR 100V JP
731419-4110 — F1 MODEL 812 FLEX ARRAY LDSPKR 230V UK
731419-5110 — F1 MODEL 812 FLEX ARRAY LDSPKR 240V AU
Warranty Period
2 years
Included in Packaging
1 × IEC power cord
- Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12-inch high-power woofer
- Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes
- Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more
- Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern
- Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)
- Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response
- Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response
Integrated speaker stand for F1 Model 812
Built-in 1000-watt amplifier
Hidden cable channels for clean appearance
Built-in handles for easy transport
