FreeSpace 3 surface-mount satellites (1 pair)
The Bose Professional FreeSpace 3 satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

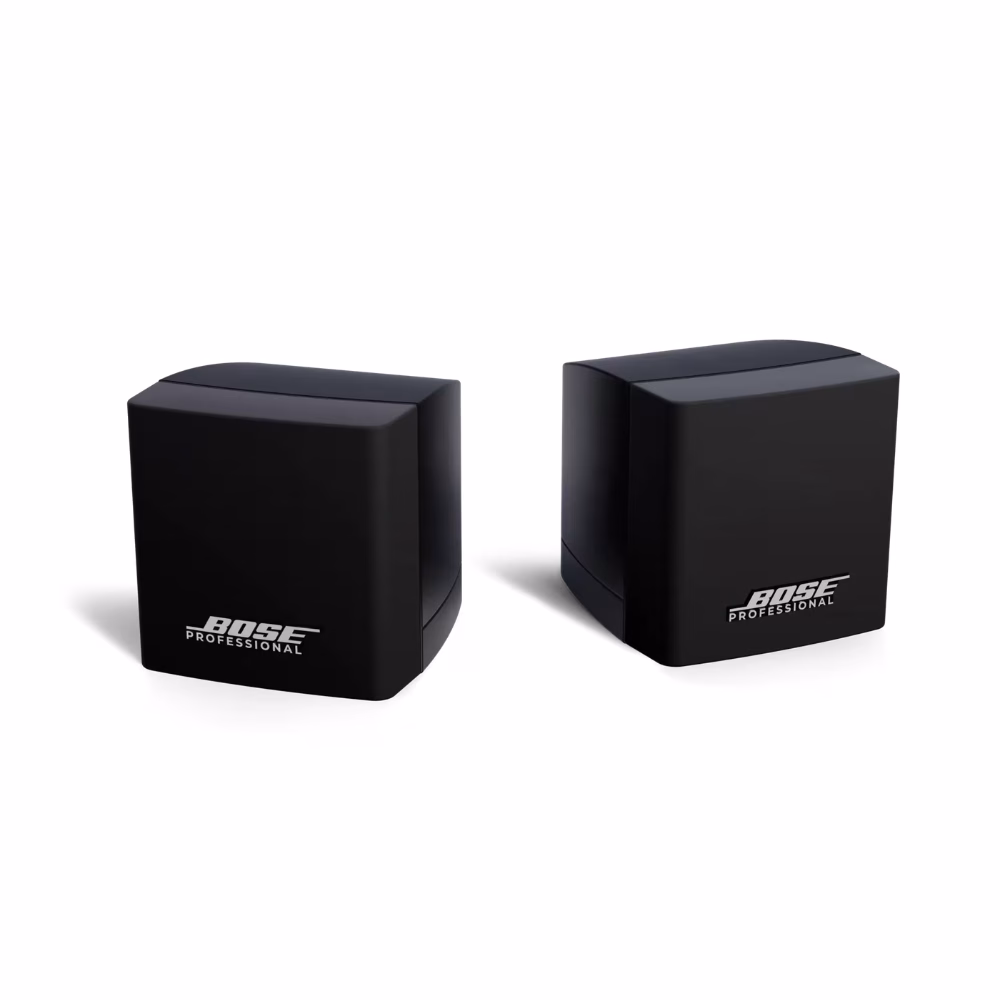

Bose FreeSpace 3 Satellite Speaker
Technical Specification
Physical
Colors
Black, white
Enclosure Material
High-impact polystyrene
Environmental
Indoor use only
Grille
Cloth
Suspension / Mounting
Wall-mount brackets included
Product Dimensions (H × W × D)
3.1 × 3.1 × 4.5 in (78 × 80 × 114 mm), loudspeaker
6.0 in (153 mm), loudspeaker depth with bracket
Net Weight
1.6 lb (0.7 kg)
Shipping Weight
4.1 lb (1.9 kg)
Performance
Frequency Range (-10 dB)
170 Hz – 20,000 Hz
Coverage, Horizontal
170° conical
Coverage, Vertical
170° conical
Calculated Maximum SPL @ 1 m
Pink noise: 95 dB continuous, 101 dB peak
IEC noise: 92 dB continuous, 108 dB peak
Nominal Impedance
6 Ω
Power Handling (Long-term Continuous)
12 W
Power Handling (Peak)
48 W
Sensitivity (SPL / 1 W @ 1 m)
84 dB
Recommended Signal Processing
Recommended
Transformer Taps (100 V)
N/A
Transformer Taps (70 V)
N/A
Transducers
Low Frequency / Full Range
1 × 2.5 in (64 mm) full-range driver per satellite
Product Codes
A00885-0100 — Black, pair
A00885-0200 — White, pair
- Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
- Modular design supports the flexibility for use of 2 or 4 satellites per bass module, and parallel connection of bass modules
- Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
- Flush-mount components are plenum rated when used with the optional plenum cover
- Selectable 70/100V or low impedance with transformer tap adjustment on bass module
- Can be configured for stereo or mono operation
