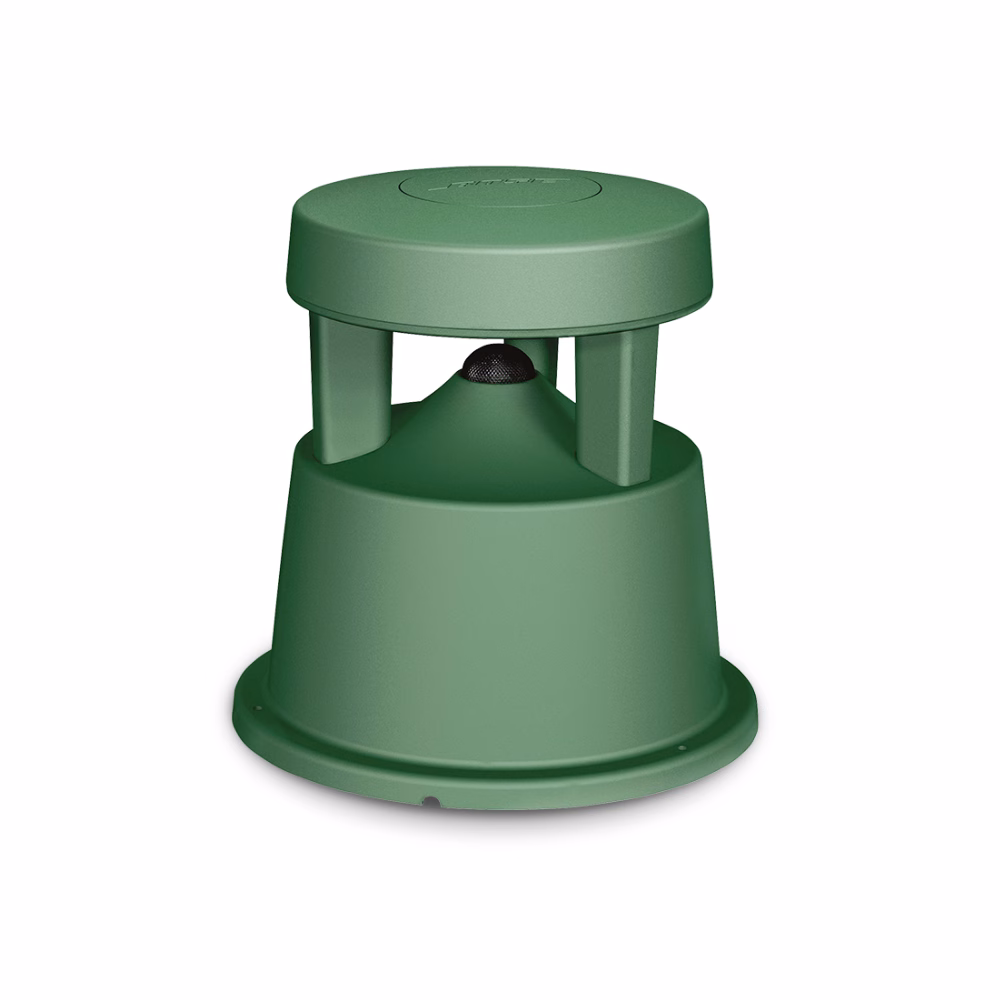

FreeSpace 360P Series II
Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz. For indoor and outdoor applications.
FreeSpace 360P Series II Technical Specification
| Category | Parameter | Detail |
| Performance | Frequency Range (-10 dB) | 60 Hz – 15,000 Hz |
| Calculated Max SPL @ 1 m | 107 dB | |
| Sensitivity (SPL / 1 W @ 1 m) | 87 dB | |
| Power Handling (70/100V) | 80 W (Continuous) / 320 W (Peak) | |
| Power Handling (8 $\Omega$) | 30 W (Continuous) / 1200 W (Peak) | |
| Nominal Impedance | 8 $\Omega$ (transformer bypassed) | |
| Transformer Taps (70V) | 10W, 20W, 40W, 80W, bypass | |
| Transformer Taps (100V) | 10W, 20W, 40W, 80W, bypass | |
| Coverage (H × V) | 360° Horizontal / 50° Vertical | |
| Transducers | Low-Frequency | 1 × 4.5 in (114 mm) environmental driver |
| Driver Protection | Recommended high-pass 60 Hz (24 dB/octave) | |
| Signal Processing | EQ not required (Bose presets available for best performance) | |
| Physical | Product Dimensions (D×H) | 14.5 in × 14.9 in (368 mm × 379 mm) |
| Net Weight | 14.5 lb (6.6 kg) | |
| Shipping Weight | 14.9 lb (6.8 kg) | |
| Colors | Green | |
| Environmental | Ingress Protection | IP55 |
| Mounting | Suspension / Mounting | 3 × #10 (M4) holes in base (screws required) |
| Other | Product Code | 40151 |
- Full-range environmental loudspeaker with one downward firing 4.5-inch (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting
- Domed port grille reflects sound into the listening area for clear, consistent performance
- Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
- Multi-tap line transformer provides easy-to-change tap settings
- Tamper-resistant design
- Internal speaker protection circuit safeguards drivers
