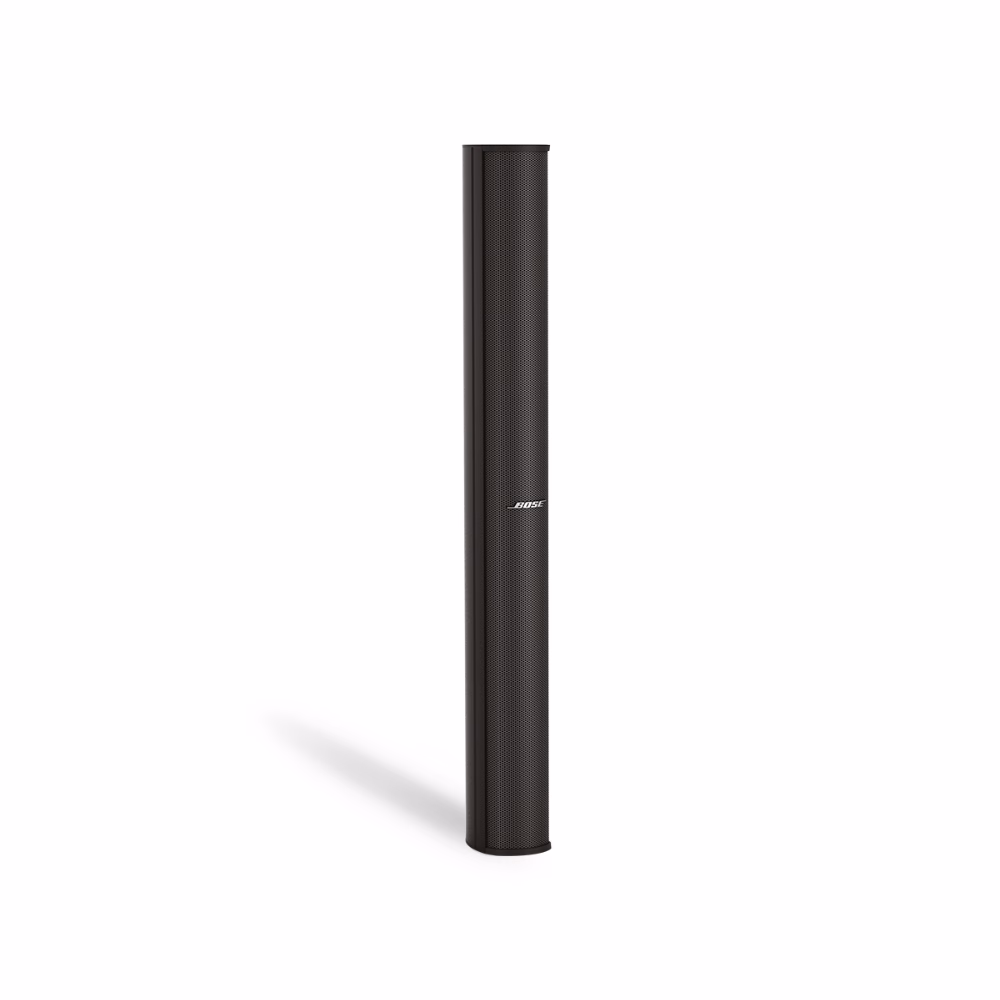

MA12EX modular column array loudspeaker
The Bose Professional MA12EX extended range indoor/outdoor column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wider 160° horizontal coverage. It has weather-resistant components that allow use in outdoor applications. The slim column enclosure blends with almost any décor.
Technical Specification
COMPLIANCE
| Item | Detail |
|---|---|
| EN 54-24 Certified | No |
PHYSICAL
| Item | Detail |
|---|---|
| Colors | Black, White |
| Enclosure Material | Extruded-aluminum sidewalls with zinc-plated steel top & bottom endcaps, powder-coated |
| Environmental | Outdoor use |
| Grille | Aluminum, powder-coated finish |
| Ingress Protection | IPX5 |
| Suspension / Mounting | 6 × M6 threaded inserts |
| Product Dimensions (H×W×D) | 38.8 × 4.1 × 5.5 in (985 × 104 × 139 mm) |
| Net Weight | 21.0 lb (9.4 kg) |
PERFORMANCE
| Item | Detail |
|---|---|
| Frequency Range (-10 dB) | 58 Hz – 16,000 Hz |
| Coverage, Horizontal | 160° |
| Coverage, Vertical | 20° |
| Calculated Maximum SPL @ 1 m | 112 dB continuous, 118 dB peak |
| Nominal Impedance | 8 Ω |
| Power Handling (Long-term Continuous) | 150 W |
| Power Handling (Peak) | 600 W |
| Recommended Signal Processing | Bose Professional loudspeaker EQ |
| Sensitivity (SPL/1W @ 1m) | 87 dB |
| Transformer Taps (100V) | CVT-MA12EX transformer available |
| Transformer Taps (70V) | CVT-MA12EX transformer available |
TRANSDUCERS
| Item | Detail |
|---|---|
| Driver Protection | Overload protection |
| Low-Frequency | 12 × 2.25 in (57 mm) high-excursion, weather-resistant drivers |
- Twelve 2.25-inch (57 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
- Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration.
- Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers.
- Optional brackets allow easy installation of single-, double- or triple-stack line array modules
