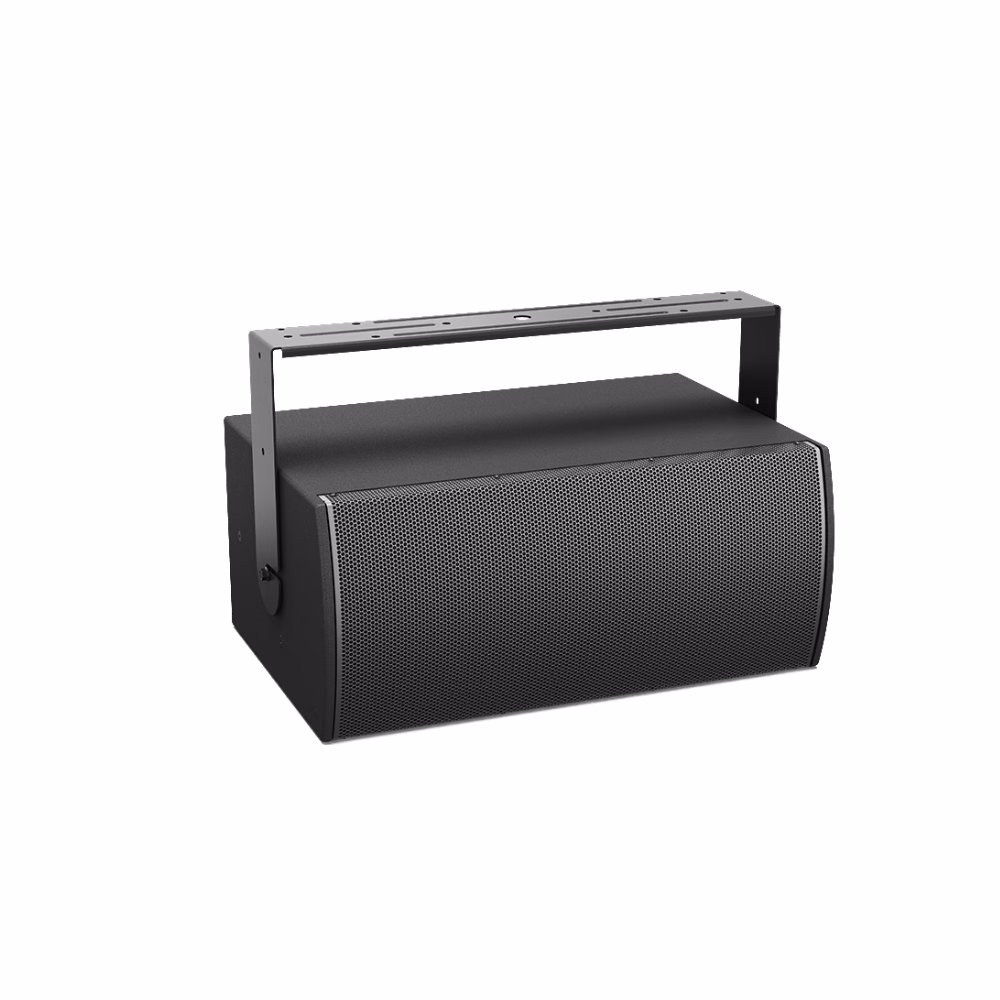

MB210-WR outdoor subwoofer
Bose Professional MB210-WR compact subwoofers are designed for outdoor installations of background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37 Hz. The MB210-WR subwoofer features two 10-inch high-excursion woofers, derived from the award-winning F1 subwoofer, in a compact, exterior-grade plywood enclosure optimized for outdoor, fixed-installation applications. Featuring outstanding performance to size ratio, the MB210-WR is designed to complement Bose Professional loudspeaker lines in outdoor applications — such as ArenaMatch Utility, Panaray, DesignMax, and Freespace — with additional bass impact.
Bose Professional MB210-WR Technical Specification
| Category | Parameter | Detail |
| Performance | Frequency Range (-10 dB) | 37 Hz – 180 Hz |
| Calculated Max SPL @ 1 m (Peak) | 129 dB (wall/ceiling) / 123 dB (free field) | |
| Calculated Max SPL @ 1 m (Cont.) | 123 dB (wall/ceiling) / 117 dB (free field) | |
| Sensitivity (SPL / 1 W @ 1 m) | 96 dB (wall/ceiling) / 90 dB (free field) | |
| Power Handling | 500 W (Long-term continuous) / 2000 W (Peak) | |
| Recommended Amplification | 500 W – 2000 W | |
| Nominal Impedance | 8 $\Omega$ | |
| Coverage (H × V) | Omnidirectional below 200 Hz | |
| Transducers | Low-Frequency | 2 × 10 in (254 mm) high-excursion woofers |
| Physical | Dimensions (H×W×D) | 11.5 in × 26.0 in × 19.1 in (291 mm × 659 mm × 484 mm) |
| Net Weight | 42.8 lb (19.4 kg) | |
| Enclosure Material | Exterior-grade plywood | |
| Grille | 3 layers (stainless steel, foam, mesh), powder-coated | |
| Colors | Black, White | |
| Environmental | Ingress Protection | IP55 (IEC 60529) |
| Rating | Rated for direct-exposure outdoor installations | |
| Mounting | Suspension / Mounting | 3 × M8 threaded inserts for U-bracket (per side) |
| Other | Compliance | EN 54-24 Certified: No |
| Product Codes | 811432-0110 (Black) / 811432-0210 (White) | |
| Warranty Period | 5 years |
- 2 × 10-inch high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning F1 portable, powered subwoofer.
- 500 W long-term power handling for high sound output and reliability
- Low-frequency extension down to 37 Hz for impactful, deep-bass music reinforcement
- 123 dB maximum continuous SPL, 129 dB peak SPL
- Exterior-grade plywood enclosure with compact size for installations
- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurea exterior coating, and molded cover to protect inputs
- U-bracket included for easy mounting to walls or ceilings
