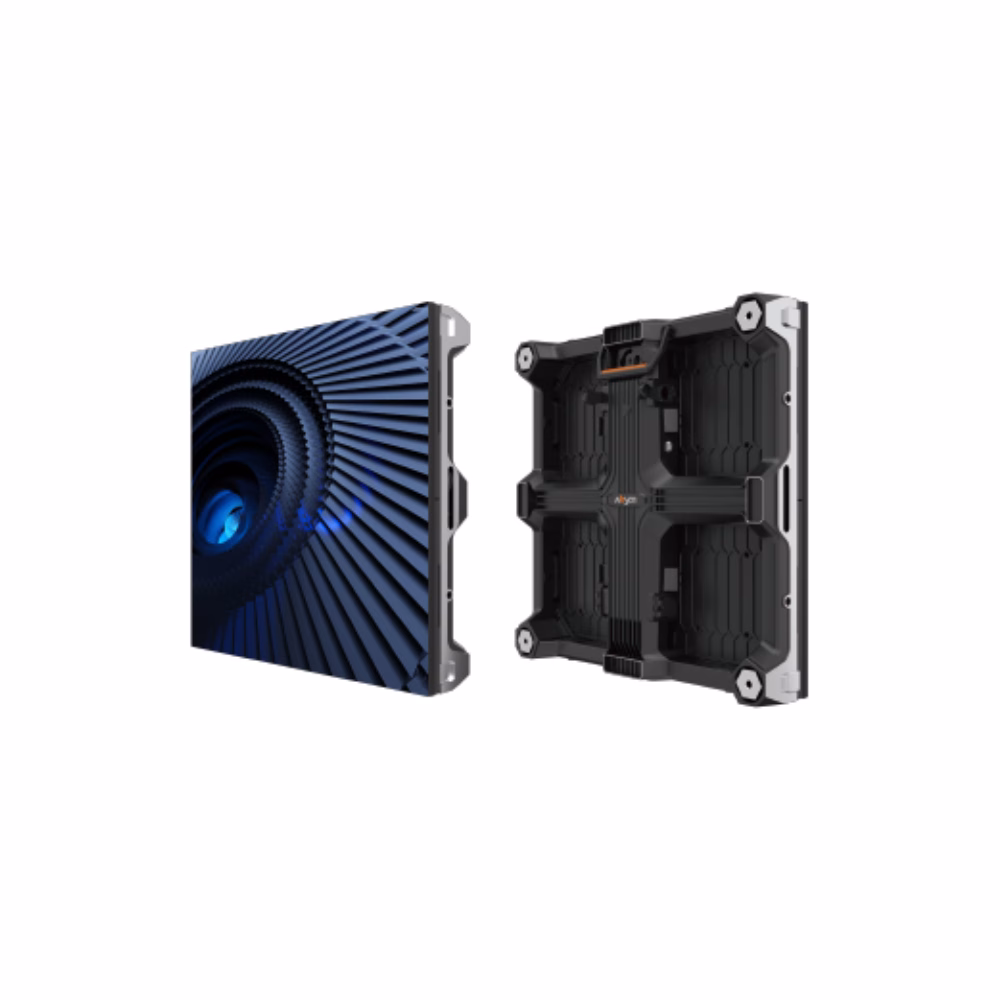

MR Series – Professional Floor Display
The Absen MR Series is a high-end professional LED floor solution designed to create immersive and interactive environments. Engineered for both the rental and fixed installation markets, this series transforms the ground into a dynamic digital canvas, capable of withstanding heavy loads while delivering exceptional visual performance.
| Feature | Details |
| Pixel Pitch | Available in 2.5mm, 2.8mm, and 3.9mm |
| Brightness | 600 to 1,200 nits (Adjustable for indoor environments) |
| Refresh Rate | 3,840 Hz (Flicker-free for broadcasting and photography) |
| Contrast Ratio | 5,000:1 for deep blacks and vibrant colors |
| Load Capacity | Up to 2,500 kg / m² |
| Ingress Protection | IP65 (Front) / IP54 (Rear) |
| Maintenance | Full Front Access (Using specialized vacuum tools) |
| Viewing Angle | 160° Horizontal / 160° Vertical |
High Load-Bearing Capacity: Built with a reinforced structural design, the MR Series can support a weight of up to 2,500 kg/m², making it safe for pedestrians, heavy equipment, and even vehicles to move across the surface.
Superior Durability & Protection: The panels are covered with a high-strength, anti-slip, and anti-glare mask. This specialized surface protects the LEDs from impact and scratches while ensuring a safe, non-slippery surface for performers or visitors.
Fast & Flexible Installation: Featuring a high-precision adjustable frame system, the MR Series can be quickly leveled on uneven surfaces. It supports both floor-standing and recessed installations.
Excellent Visual Performance: Despite being a floor display, it maintains Absen’s high standard of image quality with high contrast, wide viewing angles, and a high refresh rate to ensure flicker-free visuals for cameras.
Efficient Heat Dissipation: The series utilizes a specialized cooling structure that ensures stable operation even during long hours of continuous use in high-traffic areas.
