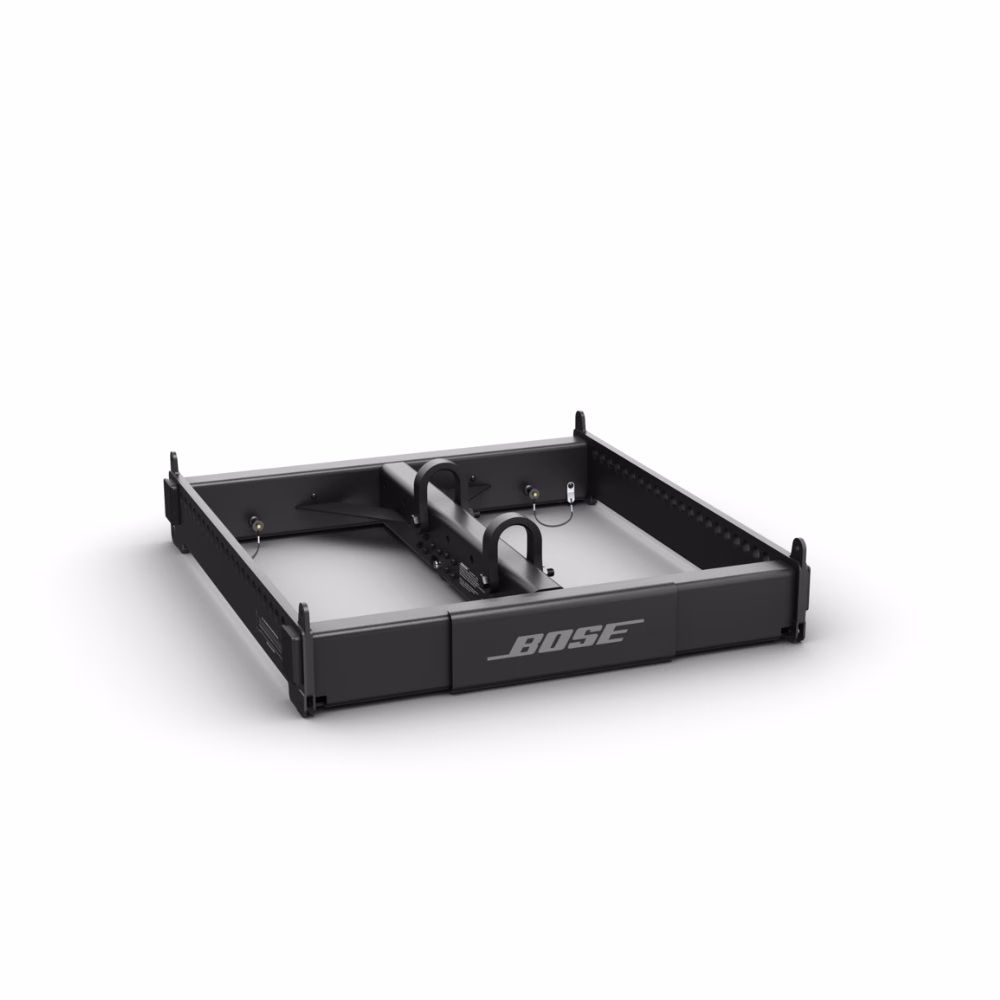

ShowMatch SMAF array frame
Use the ShowMatch Array Frame (SMAF) to create overhead suspended arrays that contain subwoofer modules, or to create ground stack arrays that use any combination of subwoofer modules, mid/high modules, or both.
Bose ShowMatch SMAF Technical Specification
| Category | Parameter | Detail |
| General | Working Load Limit (WLL) | 1800 lb (815 kg) – Center Rail |
| 1400 lb (630 kg) – Side Rail | ||
| Physical | Product Dimensions (H×W×D) | 5.9 in × 28.6 in × 30.0 in (149 mm × 727 mm × 762 mm) |
| Net Weight | 83.0 lb (37.6 kg) | |
| Colors | Black | |
| Ordering Info | Product Name | ShowMatch SMAF |
| Product Code | 770300-0110 |
Applications
Designed for a wide range of applications, including:
- Indoor use
