Product

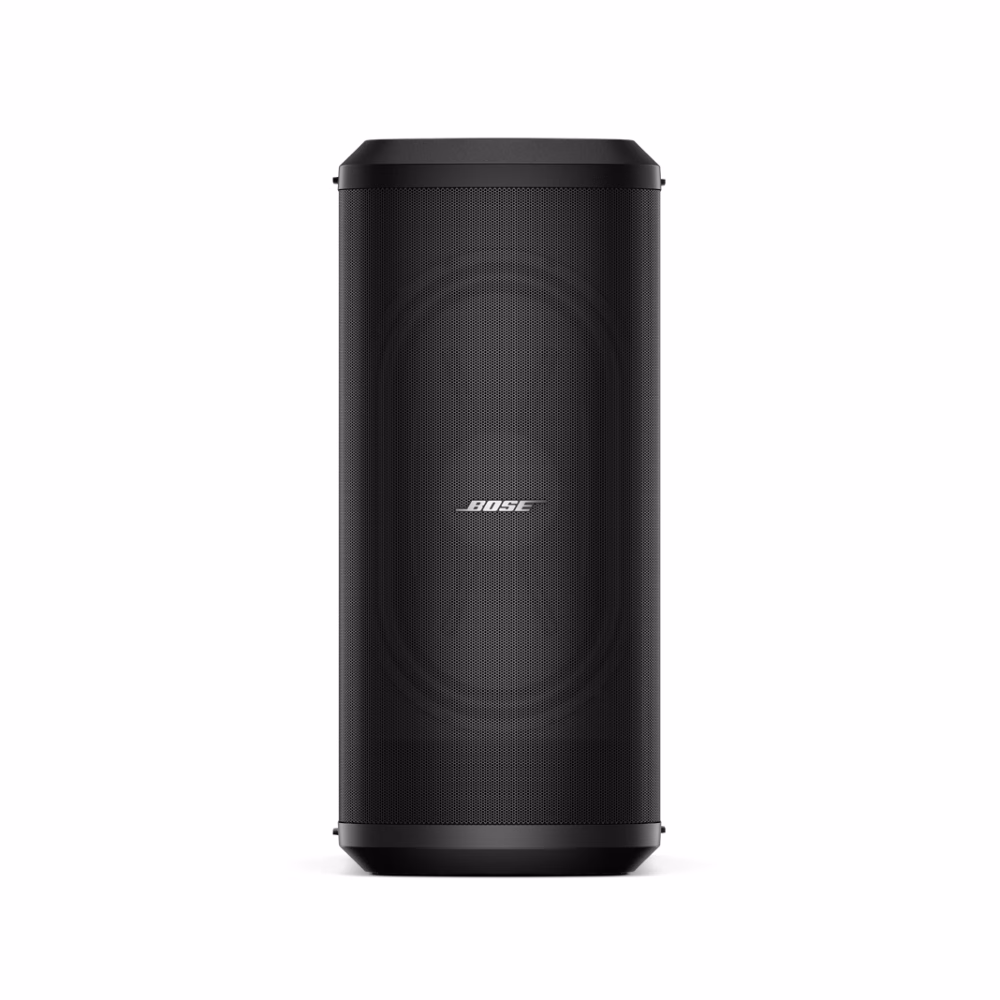

Sub2 powered bass module

A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Its unique 10 × 18-inch high-excursion neodymium RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub1 subwoofer, Sub2 is the more powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the dance floor.

Categories: , , Brand:

Bose Sub2 Powered Bass Module Technical Specification

CategoryParameterDetail
PerformanceFrequency Range (-10 dB)29 Hz – 260 Hz
Calculated Max SPL @ 1 m129.8 dB
Power Handling (Peak)1000 W
CoverageOmnidirectional (Cardioid mode: -10 dB rear rejection)
AmplificationPower ClassClass D
Number of Channels1
Audio InputsInput Channels2
Connectors(1) XLR-1/4″ TRS combo, (1) SubMatch (proprietary)
Sensitivity Options+10 dB to +45 dB
Phantom PowerNo
Integrated DSPDSP-EnabledYes
Processing FunctionsInput/Output EQ, Phase/Pattern polarity inversion
TransducersLow-Frequency1 × RaceTrack 10 × 18 in (254 × 457 mm) driver
Crossover200 Hz
PhysicalDimensions (H×W×D)27.3 × 12.5 × 21.7 in (694 × 317 × 551 mm)
Net Weight50.7 lb (23.0 kg)
Enclosure MaterialHigh-impact polypropylene, birch plywood
Cooling SystemConvection cooling
ElectricalAC Power Input100–240 VAC (±20%, 50/60 Hz)
ConnectorsIEC, SubMatch
Current Draw (Inrush)15.2 A (120 VAC) / 28.6 A (230 VAC)
ControlsRear PanelPower, EQ, and Volume Control
IndicatorsStandby, Signal/Clip, EQ (In/Out), Phase/Pattern
GeneralSoftware / AppBose Music (Android, iOS)
InterfaceUSB Type-C
Warranty Period2 years
  • Add powerful bass to your portable PA system with low-end range down to 37 Hz
  • Go from vehicle to venue easily with a slim design featuring a unique 10 × 18-inch high-excursion neodymium RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint
  • Stack multiple Sub2 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback
  • Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
  • Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more
